This quick manual serves just for a quick familiarization with the Divesoft FREEDOM+ computer. We strongly recommend studying of the complete manual, which you can find in support section of our web site divesoft.com.
Press both buttons for 3 seconds.
For diving switch to main menu (both keys) and choose desired mode.
After descend below 1.5 meter of depth is FREEDOM+ activated automatically. In which mode is FREEDOM+ activated depends on Default mode setting.
Check or set critical setting before your dive! Check especially decompression setting, and mixtures. Wrong setting could cause serious injury or death.
For setting these items go to main menu (both keys) – setup – decompression; or main menu – setup – mixtures.
Choose desirable item and use buttons or tilting (depends on setting) to change the value.
Use a coin to unscrew the plug of USB connector (between two buttons). Connect USB cable and plug the charger to grid or USB cable to your PC (or any electronic device with USB).
Interconnect Freedom with your PC or tablet via USB cable.
Select USB connection in main menu - apps. Now you can store and edit your dives, study graphs, details and many more.
If you wish, you can share it with your buddy or group.
See web site wetnotes.com and explore all the possibilities it offers!

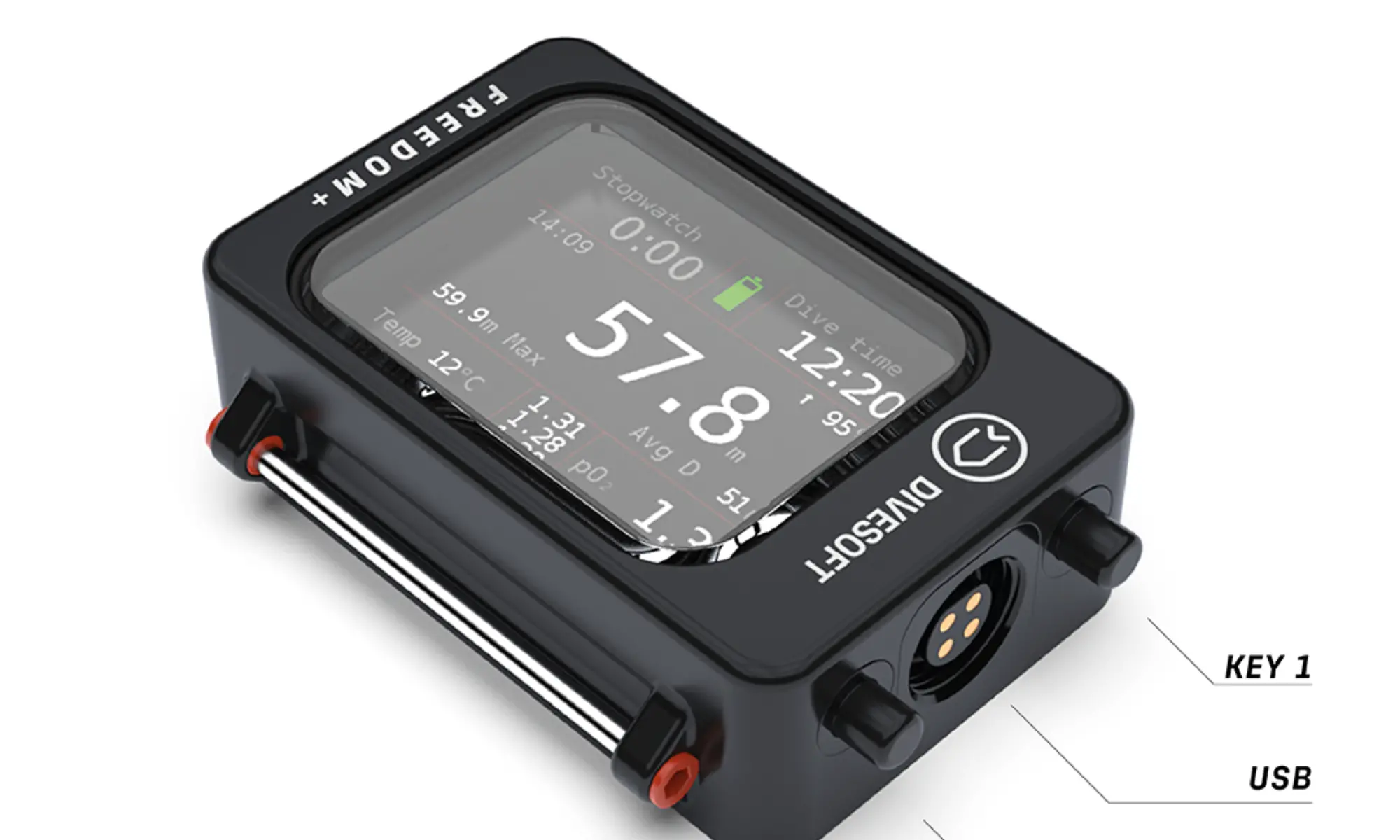

Each button can be pressed short (at least 250 ms) or long (press and hold for 1 second).
MAIN SCREEN CODES
KEY 1 cycle through the dive screens
KEY 2 on or off the screen (energy saving)
BOTH KEYS entry to standard menu
OPEN CIRCUIT MODE
KEY 1 LONG gas switch up (cyclic)
KEY 2 LONG gas switch down (cyclic)
WORKING WITH MENUS
KEY 1 select highlighted item
KEY 2 cycle through the menu item
KEY 2 LONG go one step back in the menu
BOTH KEYS return one level back
LOG BOOK – OTHER DIVES
KEY 1 LONG Page Up (to later dives)
KEY 2 LONG Page Down (to earlier dives)
SELECT WRIST MOUNT
If you prefer a strap, attach the strap to the computer.
If you prefer a bungee, then remove the screws holding the bars and pass the bungee through the threaded holes.
