CCR Liberty Backmount

Classic configurations.

Choose frontmounted or backmounted counterlungs.

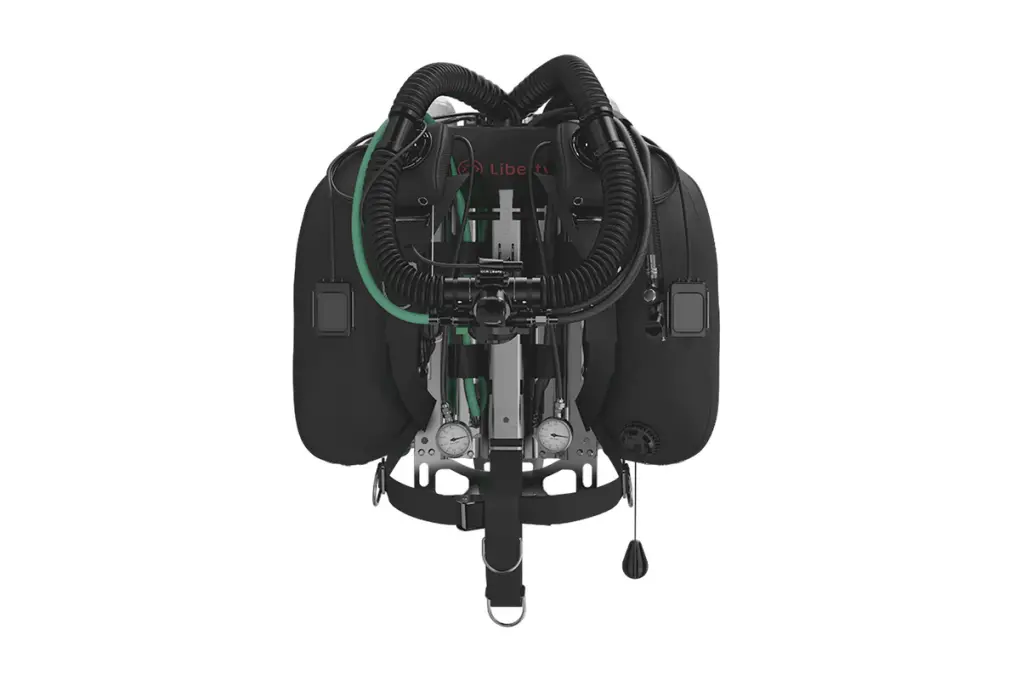

CLASSIC BMCL

Keep your chest free and enjoy even easier access to your D-rings and MAVs located at your DSV/BOV while maintaining excellent work of breathing. The Divesoft BOV is included with every BMCL unit as a standard feature to allow the fastest access to open circuit breathing gas in an emergency. Alternatively, the Divesoft DSV can be fitted. A unique system of MAVs is included in every BMCL configuration. The MAVs placed on the mouthpiece remove the need for hoses and valves on your chest. Due to their positioning on the mouthpiece, they are straightforward to find as they will always be in the same place. Find your mouth = find your MAVs.

Choose between an ADV integrated into the BOV or a Diaphragm ADV built into the T-piece.

Sleek counterlungs placed on your shoulder with an OPV that has a dump valve pull chord placed on your shoulder to make sure you’ll find it always in the same place. The CLs are easily individually removed for cleaning.

The back-mounted counterlungs are resistant to flooding and benefit from a pull dump OPV routed over the shoulder, making a DIL flush a breeze.

Counterlung volume:
3,50 L each

Dry weight:
32,50 kg (71,65 lb) – stainless steel frame and stand
29,60 kg (65,26 lb) – titanium frame and stand

Bailout valve

Divesoft Bailout Valve is included with every BMCL unit as a standard feature to allow for safest emergency access to open circuit gas.

ADV

Choose between ADV-BOV or Diaphragm Automatic Diluent Valve integrated into counter lung T-piece to allow for diluent gas addition to create optimum loop volume.

Cordura counterlungs with OPV

Sleek counterlungs placed on your shoulder with OPV that has dump valve pull placed on your shoulder to make sure you’ll find it always in the same place. The CL’s are made easy to remove for cleaning

Manual addition valve

Divesoft offers an unique system of MAVs included in every BMCL configuration. The MAVs placed on the mouthpiece remove the need of hoses and valves on your chest. Due to its positioning on the mouthpiece, they are very easy to find being always in the same place.

Flood tolerancy

The back mounted counterlungs are well resistant to flooding. With the benefit of pull dump routed on the shoulder making DIL flush a breeze.

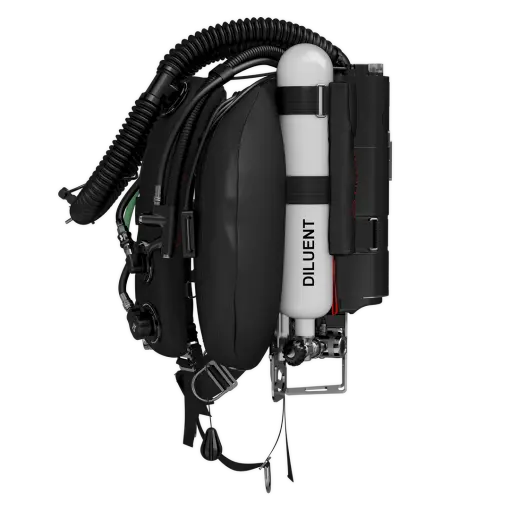

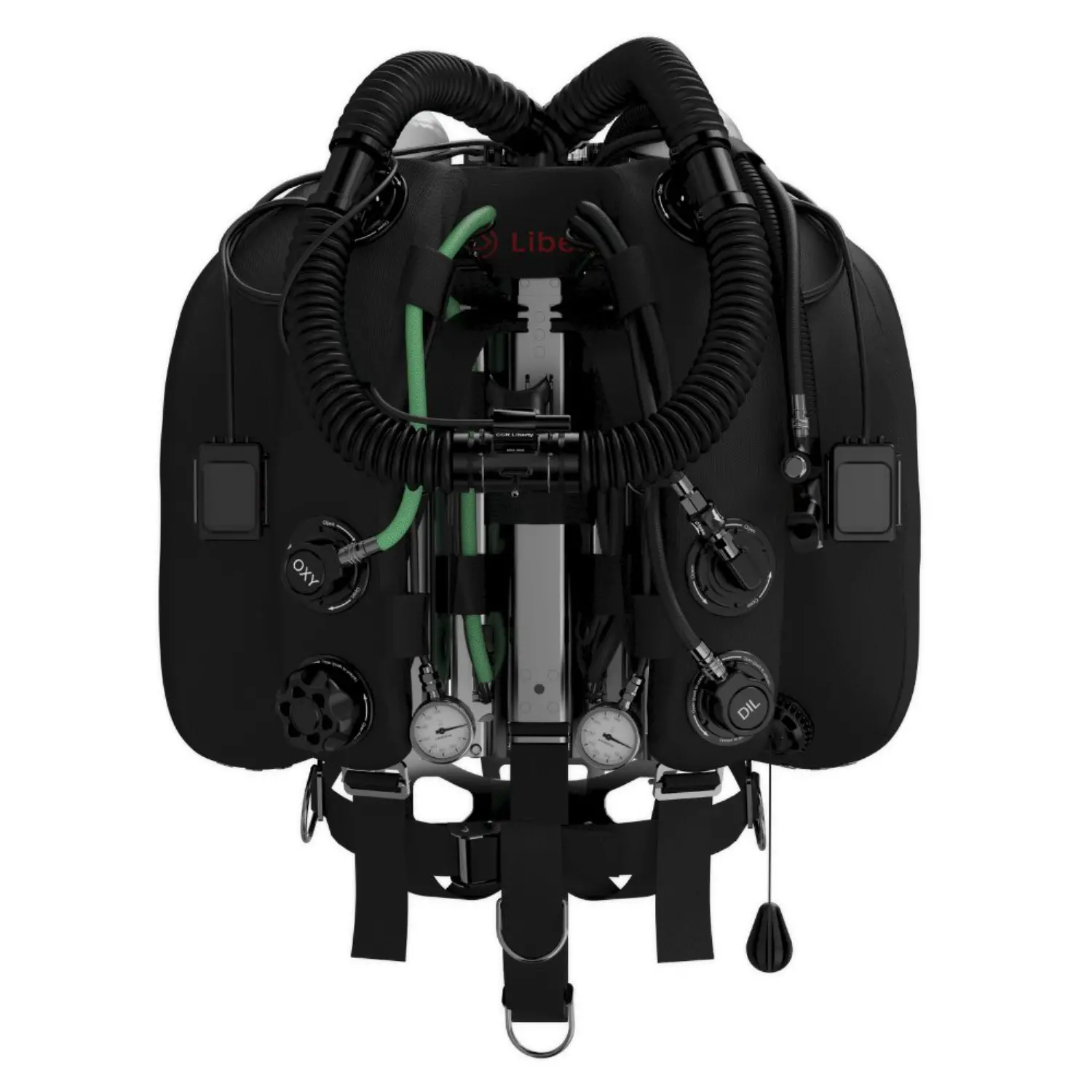

CLASSIC FMCL

Classic front-mounted counterlungs configuration provides the best work of breathing performance. The manual addition valves are located at your chest and within easy reach, offering a simple way to incorporate off-board breathing gas resources.

It comes with a standard DSV but can also be equipped with a BOV.

Each of the 3,50 L counterlungs is easily detachable for cleaning as they are mounted via robust stainless steel quick-release cobra buckles.

Work of breathing performance of 2,16 J/L at 40 m (Gas used: Air), ventilation rate 75 L/min, 1,58 J/L at 100 m (Gas used: Heliox 10/90).

The FMCL configuration is the most flood-resistant configuration thanks to the exhale counterlung being equipped with a specialized OPV developed in-house.

The FMCL Liberty comes with two in-house manufactured ADV options for immediate access to diluent breathing gas.

Select between the traditional plunger style installed directly into the inhalation counterlung or the membrane ADV incorporated into the T-piece.

Dry weight:
33,40 kg (73,63 lb) – stainless steel frame and stand
30,70 kg (67,68 lb) – titanium frame and stand

Peak WOB performance

The Front-mounted counterlungs offer absolutely the best work of breathing performance. This configuration is also extremely resistant against flooding of the unit.

MAVs

Manual addition valves are easily accesible on the counterlungs with large buttons maintaining a sleek design of the lungs.

ADV selection

FMCL configuration offers a wide selection of ADVs from mechanical or membrane to BOV ADV to satisfy your exact needs.

Offboard gas accesibility

This configuration offers the easiest way to offboard gas. The gas can be connected straight into the counterlungs with LP QD hoses.

DSV / BOV

The unit comes with Divesoft DSV in standard configuration but it can also equipped with BOV based on your preference.

Counterlungs

Easily detachable cordura counterlungs mounted via quick release cobra buckles are madeto be easy to be attached / detached. The CLs are equiped with inhouse made OPV with adjustable overpressure release treshold.
